BK5000 -Labor -biologisches Mikroskop

Holen Sie sich aktuelle Preis

Kontaktieren jetzt

Minimum der Bestellmenge: 1 Piece/Pieces

Produkteigenschaften

Marke: Raycaremed

Verpackung & Lieferung

Verkaufseinheiten:	Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Produktbeschreibung

Wir sind professioneller Hersteller von Anästhesie Atemweg , Infusionssatz, Spritze , Handschuh . Wir haben uns auf die Entwicklung, Produktion und den Verkauf der internationalen Exportprodukte und -verkäufe konzentriert. Wir haben die Qualitätsregelungsprozesse der Anästhesie -Atemwege verbessert , um jedes export qualifizierte Produkt zu gewährleisten.

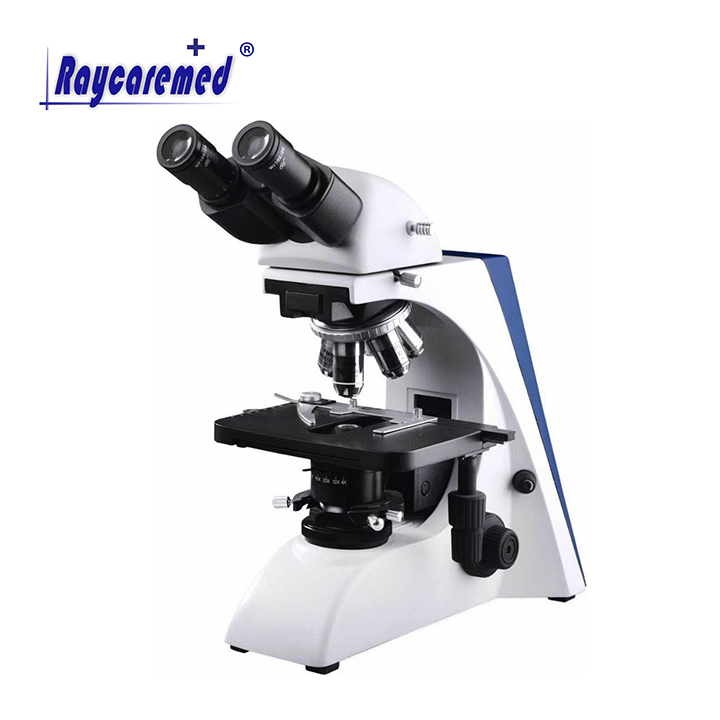

Biologisches Mikroskop der BK5000 -Serie

Optionale Kits: Fluoreszenz -Kit -Phasenkontrasteinheit Polarisator, einfacher Polarisationseinheitsanalysator Dunkelfeldkondensator (trocken und nass)

Biologisches Mikroskop -Zubehör der BK5000 -Serie

project	Specification		clothing
eyepiece	WF10×／20mm (23.2mm)		●●
Unlimited plan goals	Plan 4×/0.10	Working distance = 12.10mm	●
	Plan 10×/0.25	Working distance = 4.64mm	●
	Flat field 20×/0.40(S)	Working distance = 2.41 mm	●
	Flat field 40×／0.66(S)	Working distance = 0.65mm	●
	PLAN 100×／1.25(S, oil)	Working distance = 0.12mm	●
	Plan 2.5×/0.07	Working distance = 8.47 mm	○
	Flat field 60×／0.80(S)	Working distance = 0.33 mm	○
	Horizontal 100×／1.15 (South, Wide)	Working distance = 0.19 mm	○
Infinity Plan Semi-apochromatic Objectives	UPlanFLN 10X/0.30	Working distance = 7.68mm	○
	UPlanFLN 20X/0.50	Working distance = 1.96mm	○
	UPlanFLN 40X/0.75	Working distance = 0.78mm	○
	UPlanFLN 100X /1.30 (oily)	Working distance = 0.15 mm	○
Seidentorf binocular head	Tilt 30°, rotate 360°, interpupillary distance: 48mm-75mm		●
Double-sided trinocular observation tube	Tilt 30°, rotatable 360°, interpupillary distance: 48mm-75mm, light distribution: 100:0 / 80:20		○
Nose pads	Five-Man Group		●
Mechanical platform	Stage size: 175mm×145mm, travel: 78mm×55mm, coaxial coarse and fine focusing knob, double slide holder		●
	Integrated stage Stage size: 182 mm × 140 mm, moving range: 77 mm × 52 mm Double stage bracket		○
Condenser	Abbe number NA 1.25, with iris aperture.		●
	Swing-out condenser, NA 0.9/0.13, with iris stop.		○
Cora Lighting Wide voltage input: 100V～240V Field diaphragm, center adjustable	12V/20W halogen lamp		○
	6V/30W halogen lamp		○
	3W-LED lighting		●
filter	Blue		●
	Green/Amber/Gray		○
C-Mount	1×/0.5×/0.75× C-mount (adjustable focus)		○
Fluorescence accessories	Epi fluorescence unit (six-well disc medium, can hold Uv/V/B/G and other filters), 100W mercury lamp.		○
	Epi fluorescent unit (six-hole disc medium that can hold Uv/V/B/G), 5W-LED fluorescent lamp.		○
Phase contrast unit	Five-hole turntable 10×/20×/40×/100× phase contrast objective		○
	Independent slot for 10× /20× /40× /100× phase contrast objective		○
Dark field unit	Darkfield condenser (dry type), suitable for 4× - 40× objectives		○
	Darkfield condenser (wet type), suitable for 100× objective		○
Polarized accessories	Analyzer/Polarizer		○

Hinweis: "●" in der Tabelle ist Standardkonfiguration, "○" ist optionales Zubehör. Packungsgröße: 542 mm × 265 mm × 355 mm Bruttogewicht: 12 kg Nettogewicht: 10 kgs
